Story

You have a view with more states than you can comfortably reach by clicking through the app. Story gives those states names, renders them in isolated frames, lets you poke their inputs, and then lets the same artifact become documentation, a test, a shareable repro, or an agent-readable target. This is the Storybook-shaped idea, but built on re-frame2's frames, event pipeline, schemas, trace bus, and Xray.

The short version

Story is a workshop for application states.

In Storybook, a story is usually a render function plus args. In Story, a variant is data:

(story/reg-variant :story.login/error
  {:setup [[:login/flow [:login/submit {:email "ada@example.com"
                                         :password "wrong"}]]
           [:login/flow [:login/failure
                         {:failure {:status 401
                                    :message "Invalid credentials."}}]]]
   :script [[:dispatch-sync [:rf.assert/state-is :login/flow :error]]]
   :tags #{:dev :docs :test}})

That data is enough to:

• allocate a fresh frame;
• run setup events through your real handlers;
• render the live app view;
• run assertions;
• show evidence in Story and Xray;
• export a URL, EDN snippet, screenshot, or static build;
• let Story-MCP run the same variant from an agent.

The word to remember is variant. A variant is a named application state, not a second implementation of the view. The view remains your real view. The handlers remain your real handlers. Story supplies the workshop around them.

What makes Story different

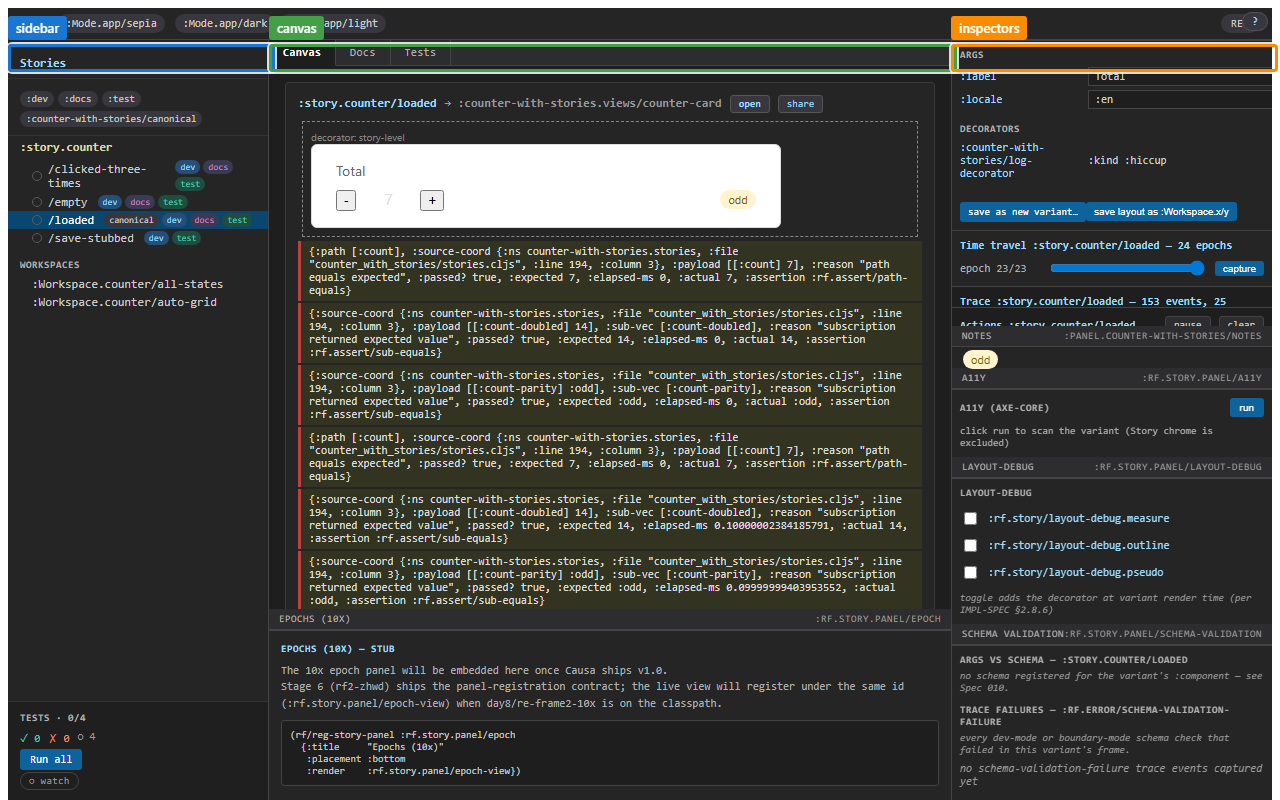

Story is familiar on purpose: sidebar, canvas, controls, docs, tests, sharing. If you know Storybook, you should not need a ceremonial robe and a map of the catacombs to get started. The interesting parts are where re-frame2's substrate lets Story do more.

Every variant runs in its own frame. The login error state and the login authenticated state do not share app-db, event queues, subscriptions, or trace records. Side-by-side states are actually side-by-side, not one global app being cleverly repainted.

Variant bodies are data. :setup, :script, :args, :decorators, and :sub-overrides are EDN-shaped. Function-valued hooks live behind registered ids. This is why a variant can be copied, hashed, shared, recorded, tested, and driven over MCP without inventing a parallel encoding.

A visible state can also be a test. Story's assertions record results instead of throwing at the first failure. Test mode, story/run, story/is, and the sidebar status all read the same run result.

Evidence is shared with Xray. Story owns the example, the script, the test result, the docs page, and the narrative around the run. Xray owns the deep runtime panels: epochs, app-db, views, trace, machines, and routing. Story embeds Xray instead of growing a second debugger.

The running example

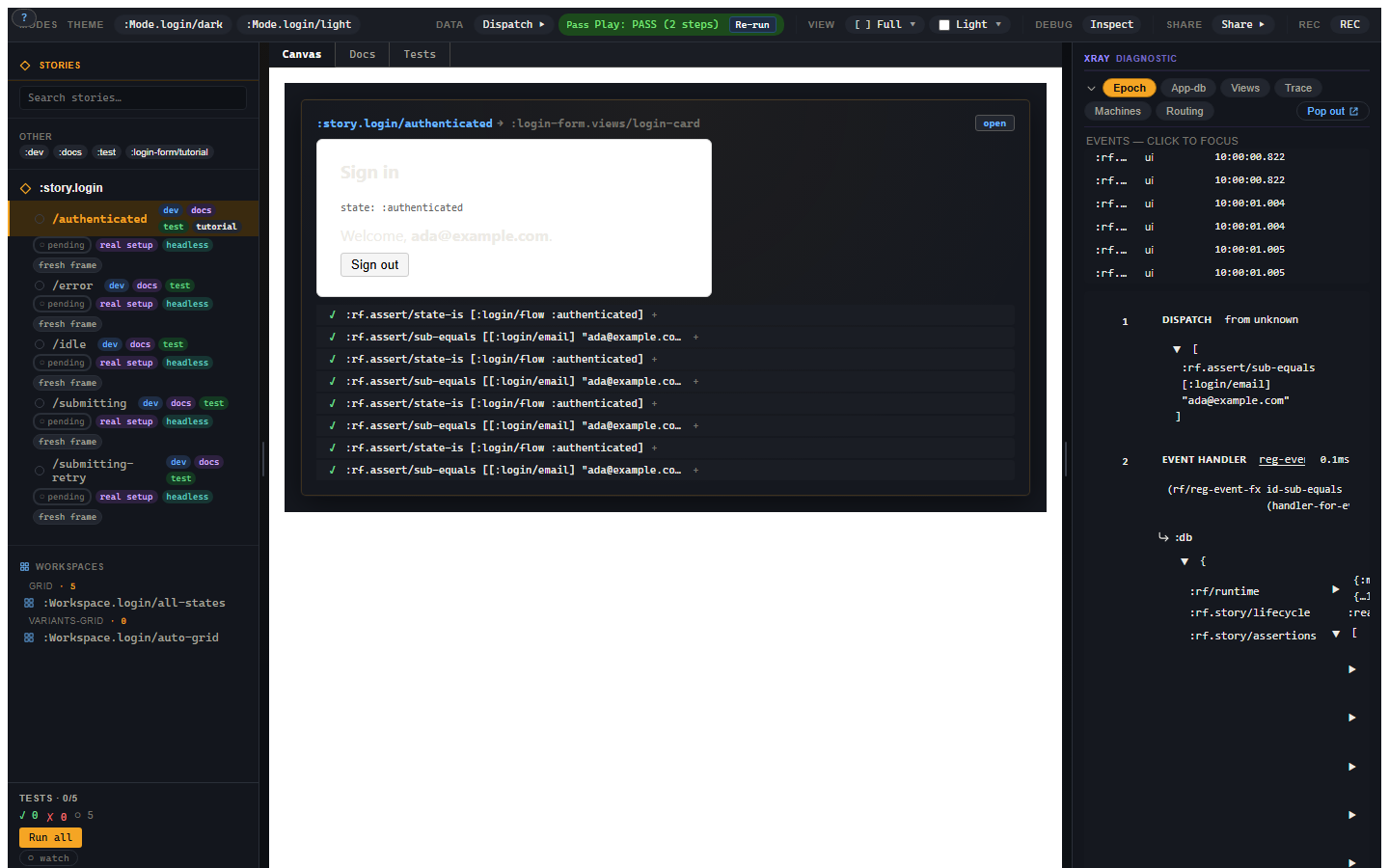

This tutorial uses the shipped login_form Story testbed. It is deliberately small: a login form with five states.

• idle;
• submitting;
• server error;
• retry submitting;
• authenticated.

That is enough to teach real setup events, network stubbing, workspaces, schema-derived args, Test mode, Docs mode, Xray, sharing, and the MCP loop. It is also small enough that you can keep the whole thing in your head, which is a quality every tutorial example should aspire to before it starts wearing a hat and calling itself architecture.

The bigger visual showcase, nine_states, appears when we talk about state matrices. It is the "put every awkward UI state on one screen" example.

Install Story

For a new app, the template can wire Story into the dev build:

clojure -Tnew create \
  :template io.github.day8/re-frame2-template \
  :name acme/my-app \
  :include-story? true

For an existing checkout during alpha, use the local tool:

;; deps.edn
{:aliases
 {:dev
  {:extra-deps {day8/re-frame2-story {:local/root "tools/story"}}}}}

Then require your stories namespace from your dev entry point and mount the shell on the Story route:

(ns my-app.core
  (:require [re-frame.core :as rf]
            [re-frame.story :as story]
            [my-app.adapters.reagent :as reagent-adapter]
            [my-app.stories]))

(defn run []
  (rf/init! reagent-adapter/adapter)
  (when (= "#/stories" js/window.location.hash)
    (story/mount-shell! (js/document.getElementById "app") {})))

Loading my-app.stories fires the reg-* calls. The first registration auto-installs Story's canonical tags, assertion events, built-in decorators, and shell vocabulary. Production builds short-circuit Story registration and mounting when Story is disabled through the config define.

Vocabulary used in this tutorial

reg-story names the parent grouping and view id. It is where common args, tags, and decorators usually live.

reg-variant names one state of that story. It has :setup events, :script steps, args, expectations, and metadata.

reg-workspace arranges variants together, usually as a grid.

reg-mode creates toolbar-wide arg tuples such as light/dark theme or locale.

story/run, story/is, and story/explain are the three programmatic verbs. They run a registered variant or an inline plan, report through the test framework, or show how the final plan was assembled.

The tutorial teaches the public :setup and :script vocabulary. Some recorder and internal surfaces still mention the older :play-script spelling; the registrar lowers that shape while the tree finishes the pre-alpha rename.

Chapters

1. Your first variant - register and render a login state.
2. Every state, side by side - build a grid of states and use Story as a review surface.
3. The fidelity ladder - know whether a state was reached honestly or painted cheaply.
4. The variant is a test - run variants from Test mode and unit tests.
5. The recorder, and cannot-run - record scripts and understand honest refusal.
6. Xray, earned at failure - move from a failed expectation to runtime evidence.
7. Workspaces, modes, composition - reuse context without hiding behaviour.
8. Snapshot identity and sharing - share reproducible states and stable visual keys.
9. Multi-substrate and the agent loop - understand renderer choice and Story-MCP.

The API reference is the lookup track. Read the tutorial first if Story is new to you; use the reference when you already know which surface you need.
