1. Your first story

Three lines of code; one registered variant; one canvas paint.

(ns counter-with-stories.stories
  (:require [re-frame.story :as story]
            [counter-with-stories.views]))   ; loads the view registry

(story/reg-story :story.counter
  {:doc       "The counter — every state, all in one place."
   :component :counter-with-stories.views/counter-card
   :args      {:label "Count"}
   :tags      #{:dev :docs}
   :substrates #{:reagent}})

(story/reg-variant :story.counter/empty
  {:doc    "Fresh counter at zero."
   :events [[:counter/initialise 0]]
   :play   [[:rf.assert/path-equals [:count] 0]]
   :tags   #{:dev :docs :test}})

Save. Reload. Open #/stories. You're in.

What just happened

• reg-story registers the parent story — a logical group of variants that share a component, default args, decorators, tags. It carries no state on its own; it's a registry entry.
• reg-variant registers one variant — one scenario, one frame, one canvas paint.

The id grammar is locked. Stories live under :story.<dotted-path>. Variants live under :story.<path>/<variant-name>. The sidebar tree is built from the dotted path — no separate :title field.

Three slots in reg-variant carry the meat:

• :events — a sequence of regular event vectors. They dispatch in source order through the same router that the live app uses. By the time the canvas renders, the variant frame's app-db is exactly what those events left behind.
• :args — the variant's prop overrides. Resolved through a three-layer chain (see below).
• :play — the assertion sequence. Runs after :events settle. Records its results; doesn't throw.

A variant body is plain EDN. No fn slots; no closures; no JSX-shaped DSL. The :component is a view-id keyword, not a function ref. That's the contract that lets variants round-trip through MCP, through visual-regression services, through agent input pipelines.

Three-level args + schema-derived controls

Args resolve through a three-layer chain:

global-args   ← set once via (story/configure! {:global-args {...}})
     ↓
story-args    ← the :args slot on reg-story (parent default)
     ↓
variant-args  ← the :args slot on reg-variant (per-scenario override)
     ↓
cell-overrides ← live edits from the controls panel

Deep-merge, left-to-right. Variants that don't say anything inherit; variants that override win. Modes (next chapter) sit between global and story for a fourth point of leverage.

The controls panel in the right-side pane auto-derives editors. If the parent story carries :argtypes {:label {:control :text}}, the panel renders a text input wired to dispatch a cell-override. If you've gone further and tagged the schema in re-frame.schemas (see Guide 04a — Schemas), the panel reads the schema directly — a :keyword schema becomes a select, an :int schema with :max/:min becomes a number-input or slider, an :enum becomes a radio group. No argTypes plumbing; the schema is the source of truth.

A variant can also declare its own schema inline via the :rf/schema slot — useful when one variant exercises a narrower or stricter shape than the component-wide registered schema:

(story/reg-variant :story.counter/labelled
  {:rf/schema [:map
               [:label  :string]
               [:colour [:enum :red :green :blue]]
               [:count  [:int {:min 0 :max 99}]]]
   :args      {:label "Count" :colour :green :count 0}
   :events    [[:counter/initialise 0]]})

The args editor renders one row per :map entry (:colour as a select, :count as a number-input clamped 0–99). Schema-violation rows flag args that don't conform. One declaration; two pieces of UI.

Decorators — three kinds

Decorators wrap the canvas with reusable concerns: layout, theming, mock data, fx mocking. Three kinds:

• :hiccup decorators — wrap the rendered tree. The closure lives at the decorator's registration site, not the variant body.

  (story/reg-decorator :app/centered-layout
    {:kind :hiccup
     :wrap (fn [body _ref-args]
             [:div {:style {:display "flex" :justify-content "center"}} body])})

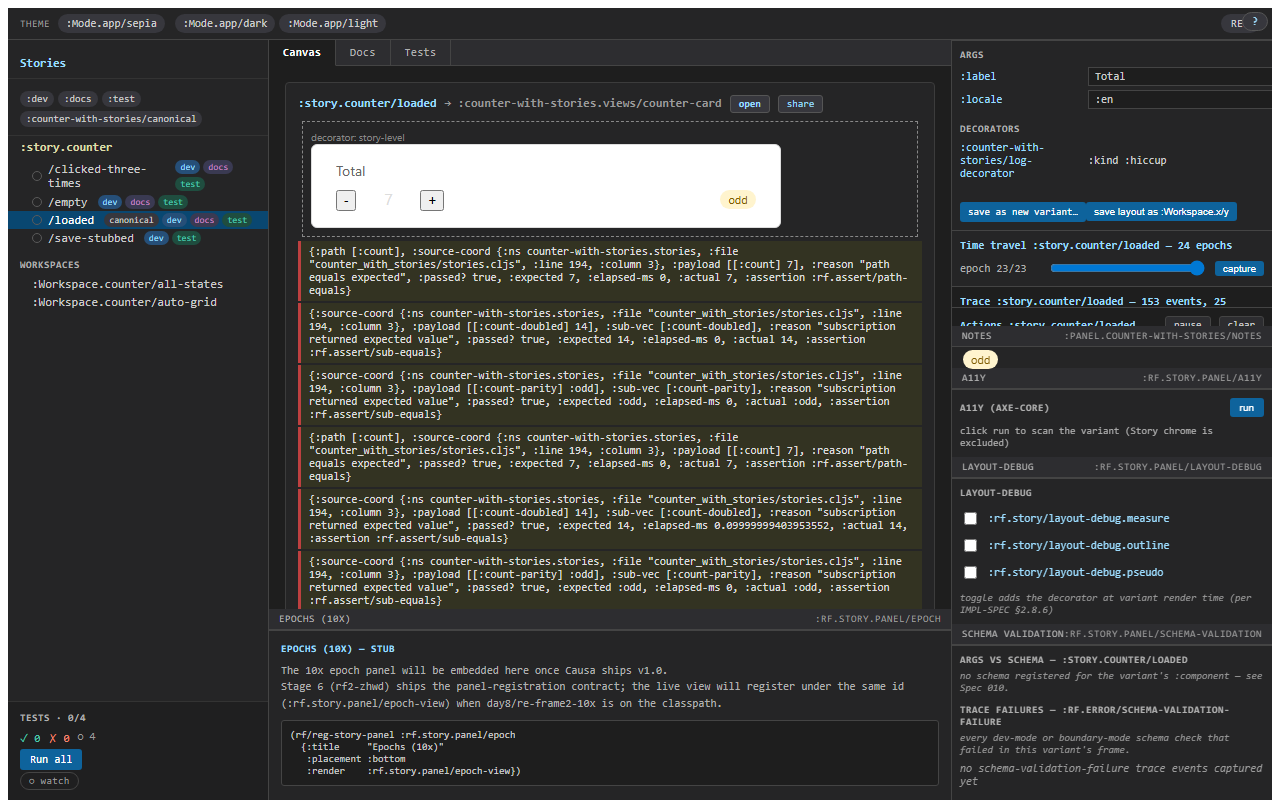

  (story/reg-variant :story.counter/loaded
    {:decorators [[:app/centered-layout]]
     :events     [[:counter/initialise 7]]})


• :frame-setup decorators — patch the variant's frame at allocation time. Used when several variants share an "assume the user is logged in" setup. The events dispatch before the variant's own :events; the patch merges into the variant frame's app-db. Pure data, no closures.
• :fx-override decorators — stub a network call. The marquee shape is force-fx-stub, MSW-flavoured, which Story ships built-in:

  (story/reg-variant :story.counter/save-stubbed
    {:events     [[:counter/initialise 5]
                  [:counter/save]]
     :decorators [[story/force-fx-stub-id
                   :counter/sync-to-server
                   {:ok? true}]]
     :play       [[:rf.assert/effect-emitted :counter/sync-to-server]]})


Variant bodies reference decorators by id; closures live on the decorator registrations. This is what keeps variant bodies serialisable.

Play sequences + assertions

The :play slot is a sequence of regular event-vectors. They dispatch through the same router as :events — but the seven canonical assertion events don't throw on failure; they append a record to [:rf.story/assertions] in the variant frame's app-db.

The seven:

Event id	Payload	Semantics
:rf.assert/path-equals	[path expected]	(= (get-in @app-db path) expected)
:rf.assert/path-matches	[path malli-schema]	Malli validates the value at path
:rf.assert/sub-equals	[sub-vec expected]	(= @(subscribe sub-vec) expected)
:rf.assert/dispatched?	[event-or-pred]	Did this event dispatch during play?
:rf.assert/state-is	[machine-id state]	Is the machine in state?
:rf.assert/no-warnings	[]	No :warning trace events since play start?
:rf.assert/effect-emitted	[fx-id] (or [fx-id pred])	Was this fx-id emitted?

The record-don't-throw shape is the design call. A play sequence with eight assertions where three fail still runs all eight; you get the full picture, not the first failure. Tests then read the accumulator:

(deftest counter-loaded
  (cljs.test/async done
    (-> (story/run-variant :story.counter/loaded)
        (story.async/then
          (fn [result]
            (is (story/assertions-passing? result))
            (story/destroy-variant! :story.counter/loaded)
            (done))))))

run-variant returns a promise (CLJS) or future (JVM) of {:frame :app-db :assertions :rendered-hiccup :elapsed-ms :snapshot :lifecycle}. The same result map the MCP surface returns when an agent asks for a preview. Same shape; same vocabulary.

Beyond counter: a five-state login form

Counter is the simplest possible variant body — one event in :events, one :rf.assert/path-equals in :play. The login-form testbed at tools/story/testbeds/login_form/ is the richer shape — five variants over the five FSM states the welcome page opened with:

;; The :submitting variant — a request is in flight.
(story/reg-variant :story.login/submitting
  {:doc        "Inputs disabled, button reads 'Signing in…'. The
                fx-stub records the request and resolves nothing
                so the canvas locks at :submitting."
   :events     [[:login/flow [:login/submit {:email    "ada@example.com"
                                              :password "correct-horse"}]]]
   :decorators [[story/force-fx-stub-id :rf.http/managed {}]]
   :play       [[:rf.assert/state-is      :login/flow :submitting]
                [:rf.assert/effect-emitted :rf.http/managed]]
   :tags       #{:dev :docs :test}})

The :events slot dispatches a real submit event into the FSM. The force-fx-stub decorator intercepts the :rf.http/managed call the machine's :issue-request action emits, so the request never resolves and the canvas locks at :submitting. The play sequence asserts the FSM state and that the fx was emitted. Same EDN shape; richer domain.

Open http://127.0.0.1:8030/login-form/#/stories after npm run test:examples builds it, and the five variants — /idle, /submitting, /error, /submitting-retry, /authenticated — show up in the sidebar. The :Workspace.login/all-states workspace mounts all five side-by-side. The five FSM states from the tutorial's index page, in one panel paint.

Next: mode tabs — Canvas, Docs, Tests, viewport, a11y, locale.
