Your first variant

Keep a rejected login as a named example, then check that the login machine and its error message agree. This exercise uses the shipped testbed, so the events, subscriptions and view are already available.

From the repository root:

npm ci --prefix implementation
cd implementation
npm run dev -- :examples/login-form

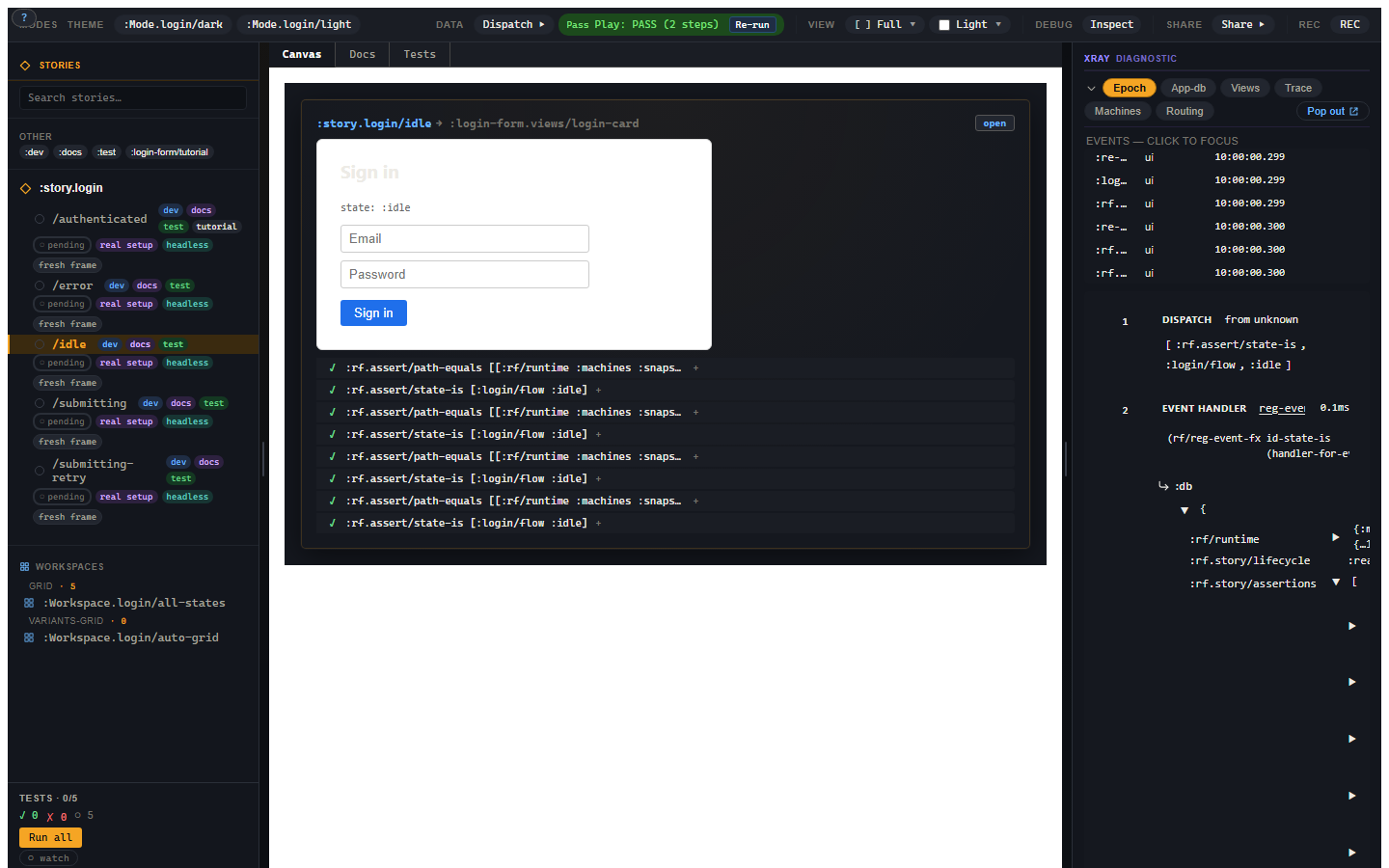

Open http://localhost:8043/index.html#/stories and select :story.login-form/error. The canvas shows a rejected login with the form enabled again. The pending and authenticated variants are available without editing the application or sending a real request.

The sidebar selects a named state (2). The canvas renders it (3). The toolbar controls presentation and replay (1); the right rail edits inputs and opens runtime evidence (4).

The smallest useful Story file

The testbed's tools/story/testbeds/login_form/stories.cljc requires login-form.events, login-form.subs and, in its ClojureScript branch, login-form.views. Those namespaces register the application code.

The parent groups the view and shared defaults:

;; cf. tools/story/testbeds/login_form/stories.cljc
(rf.story/reg-story :story.login-form
  {:component :login-form.views/login-card
   :args {:heading "Sign in"}
   :tags #{:dev :docs}
   :substrates #{:reagent}})

:component is the registered view id. The variant supplies the state:

;; This namespace requires [re-frame.story :as rf.story].
(rf.story/reg-variant :story.login-form/error
  {:doc "A rejected password leaves the form ready to retry."
   :decorators [[rf.story/force-fx-stub-id :rf.http/managed {}]]
   :setup [[:login/flow
            [:login/submit {:email "ada@example.com" :password "wrong"}]]
           [:login/flow
            [:login/failure {:failure {:status 401}}]]]
   :script [[:assert [:rf.assert/state-is :login/flow :error]]]
   :tags #{:dev :docs :test}})

:setup dispatches the application's real events in order: submit, then failure. The decorator intercepts the HTTP effect, records its call and sends no reply, so setup chooses exactly when the failure arrives. The view renders the state those events reached. :script then checks the machine state.

This is the same shape as the shipped variant; it is not a new mock view. The testbed's parent also selects its app image so it can coexist with other apps in combined test builds.

Add a useful expectation

Append this registration to that same testbed namespace, outside its register-all! function:

(rf.story/reg-variant :story.login-form/error-message
  {:extends :story.login-form/error
   :script [[:assert [:rf.assert/state-is :login/flow :error]]
            [:assert [:rf.assert/sub-equals
                      [:login/error] "Invalid credentials."]]]
   :tags #{:dev :docs :test}})

After hot reload, select error-message and open Tests. Expect two passing assertions: the machine is in :error and the real subscription returns the message. :extends keeps the parent's setup and HTTP stub; this child runs its own script. The same registration can run under rf.story/is in a test namespace.

Use this shape in your app

Require application registrations before declaring stories. Keep shared events and subscriptions in .cljc if the same variants should run on the JVM:

(ns my-app.stories
  (:require [re-frame.story :as rf.story]
            [my-app.events]
            [my-app.subs]
            #?(:cljs [my-app.views])))

Use your own registered view and event ids in the declarations. A story id is an unqualified keyword such as :story.login-form; its variants use that name as their namespace, such as :story.login-form/error. The registration reference describes the other id forms and body keys.

A schema on the view gives you Controls

The login card declares a :rf/props schema with a string :heading. Story derives its heading field in Controls from that schema. Change the heading and the canvas updates; it is a view input, independent of the login machine's state.

Troubleshooting

Symptom	Cause	Fix
The new variant is absent	The form is inside a function that was not called, or its namespace was not loaded	Put the exercise registration at namespace level and confirm hot reload.
:rf.error/variant-id-shape	The variant id does not use the Story namespace form	Use :story.login-form/error-message.
:rf.error/variant-shape	A body key or value has the wrong shape	Read the named field; use :setup, :script and :tags as shown.
The form sends an actual HTTP request	The effect was not stubbed	Include the decorator, or inherit from the testbed's error variant.
Machine assertions cannot find the state in app-db	Machine snapshots live in runtime state	Use state-is, or sub-equals on the projection subscription.
