Install Xray in a development build¶

Add Xray to your development classpath and preload it in your browser build. The app supplies an inline host element; Xray renders beside the app once rf/init! installs its adapter.

Add the dev dependency¶

;; deps.edn: the re-frame2 checkout is beside your app directory
{:aliases
 {:dev
  {:extra-deps
   {day8/re-frame2-xray {:local/root "../re-frame2/tools/xray"}}}}}

:local/root is relative to your deps.edn. Adjust it for your checkout. Keep the dependency in the development alias.

;; shadow-cljs.edn: add these to your existing configuration
{:deps {:aliases [:dev]}
 :builds
 {:app
  {:devtools {:preloads [day8.re-frame2-xray.preload]}}}}

The fragments above add Xray to an existing app; retain that app's target, modules and other dependencies. The :deps alias must include the alias containing the Xray dependency.

Add the npm packages¶

Xray's machine chart imports two npm packages, @xyflow/react and elkjs, through day8/re-frame2-machines-viz. A :local/root dependency does not install JavaScript packages, so add both to your app's npm project beside react and react-dom:

npm install --save-dev @xyflow/react@<version> elkjs@<version>

Xray ships no npm manifest of its own, so take the versions from the re-frame2 checkout your :local/root points at. Its implementation/package.json lists both, but elkjs there is a range; for an exact pin, use the version implementation/package-lock.json resolves, which is the one re-frame2 tests against. Keep an existing compatible pin.

Reserve the host¶

<div class="rf-xray-layout">
  <main id="app"></main>
  <aside data-rf-xray-host></aside>
</div>

:root { --rf-xray-accent: #539bf5; }
body { margin: 0; }
.rf-xray-layout { display: flex; width: fit-content; min-width: 100%; min-height: 100vh; }
[data-rf-xray-host] {
  flex: 0 0 var(--rf-xray-inline-width, 560px);
  min-width: 320px;
  box-sizing: border-box;
  position: sticky;
  top: 0;
  right: 0;
  height: 100vh;
  overflow: hidden;
  border-left: 1px solid #2a2a2a;
}
#app { flex: 1; min-width: 0; }
@media print { [data-rf-xray-host] { display: none; } }

Keep the window as the app's scroller: routing's scroll-to-top and Back restoration use it. Xray stays beside the app and scrolls its own contents. Drag its left edge to change its width; Xray remembers the chosen width. A printed page hides Xray and prints the app at full width.

An app that already scrolls an inner pane, with html, body, #app at height: 100%, gives the wrapper height: 100vh instead of min-height: 100vh, so that chain resolves against a fixed height and the pane keeps scrolling. The window then does not scroll, so use this only where the app's own router, not re-frame2 routing, manages the pane.

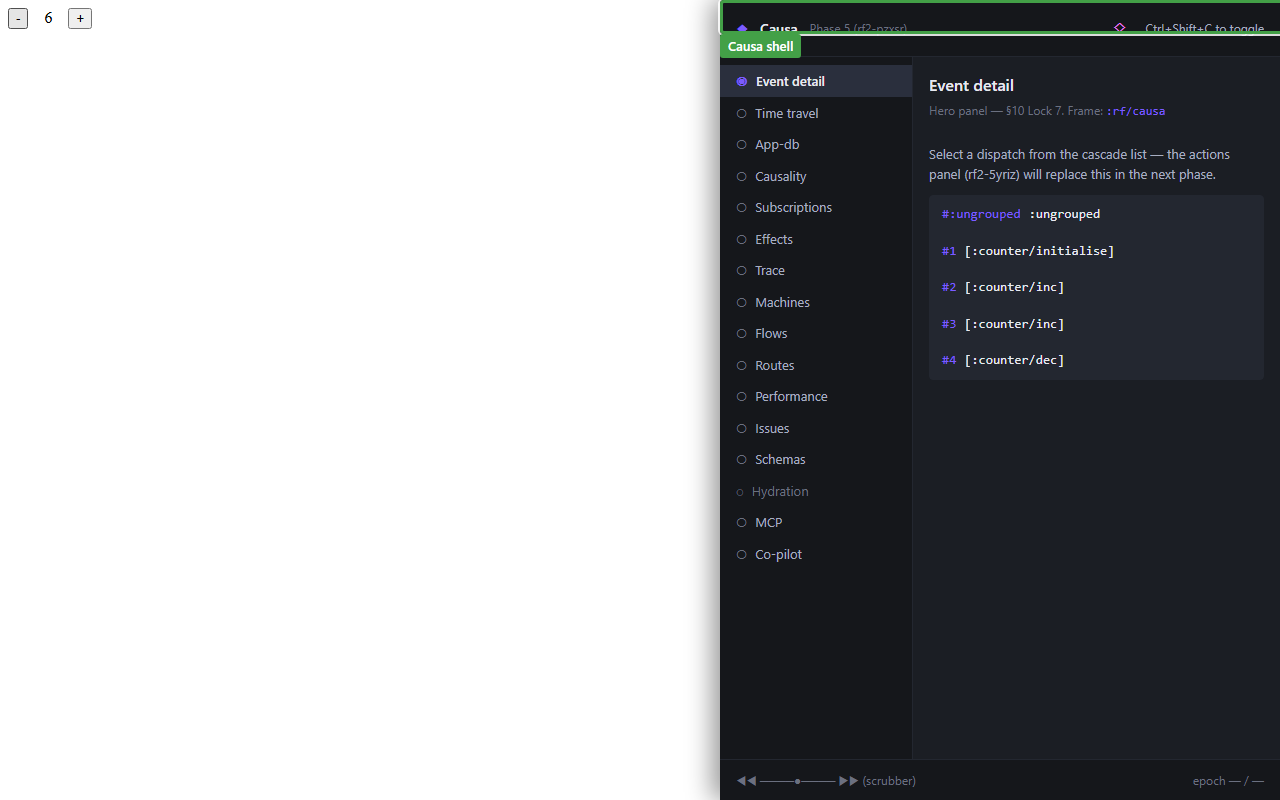

With the preload installed, start your usual dev build and interact with the app. Xray opens automatically. Ctrl+Shift+C hides or shows it. Choose the app's frame if the picker has not selected one, then check that an application event appears in Event History.

Configure the initial behaviour¶

Call configure! before your app calls rf/init!:

(require '[day8.re-frame2-xray.core :as xray])

(xray/configure! {:rf.xray/editor :cursor
                 :rf.xray/auto-open? false})

This chooses Cursor as the project's editor and waits for an explicit open. open!, toggle! and Ctrl+Shift+C still work. A different host selector is :rf.xray/layout-host-selector "#devtools-xray". Each developer can choose a local editor override in Settings.

The ⛶ button opens a second same-origin window. Settings → General → Panel position offers Right rail (inline) and Fullscreen overlay. For a page that intentionally has no inline host, install manually and call open-overlay!; the mount reference shows that sequence.

Try the example without wiring an app¶

From a re-frame2 checkout:

cd implementation
npm ci
npm run dev -- :examples/standard-epochs

Open http://localhost:8031. The page supplies an app, buttons and the inline Xray host. Run a numbered step and select its event in Xray.

Clickable jump to source¶

Xray uses registration coordinates and view attributes to open code in your editor. Configure its project root and editor when the development server cannot resolve them automatically. The source walkthrough shows both paths and how to diagnose a missing coordinate.

Troubleshooting¶

Run this in the browser console when the panel does not open:

window.day8.re_frame2_xray.status()

It returns a ClojureScript map. Expand its :diagnostic in the console.

Symptom or diagnostic	Cause	Fix
The build fails with `The required JS dependency "@xyflow/react" is not available` (or `"elkjs/lib/elk.bundled.js"`)	The chart's npm packages are not installed	Add the npm packages; `status()` cannot help, because the preload never compiled
The browser-global API is undefined	The Xray preload did not load	Check the dev alias and build's `:devtools :preloads`; restart after a classpath change
`:missing-layout-host`	No element matches the configured selector	Add the host markup or correct the selector; the console also prints a host snippet
`:no-substrate-adapter`	The preload waited about six seconds without an installed adapter	Check that the app calls `rf/init!` and that boot did not fail
`:auto-open-disabled`	Automatic opening was turned off	Open explicitly; this diagnostic is healthy
The panel opens but has no app events	No app frame is selected, or events are filtered	Select the frame and clear filters/mutes
A pop-out does not open	The browser blocked it	Allow popups for this dev origin or use the inline panel
App keyboard shortcuts stop working	Xray handles the same chord	Disable Handle keys?, or configure `:rf.xray/keybinding-enabled? false`

Keep it out of production¶

Use :devtools :preloads and a dev-only dependency alias. If you install manually, keep both the Xray :require and the install calls in a dev-only namespace. Guarding a call does not remove an unconditional dependency. The release setup explains the distinction.
