Diagnose a failed test with Xray

Story names the failed expectation. Xray shows the application events and state changes behind it. Follow one failure into Xray, identify why it happened, then re-run the same scenario.

The failure path

In the login testbed's stories namespace, add this diagnostic exercise:

;; Intentionally wrong: this exercise makes a visible failure.
(rf.story/reg-variant :story.login-form/wrong-expectation
  {:extends :story.login-form/error
   :script [[:assert [:rf.assert/state-is :login/flow :idle]]]
   :tags #{:dev :test}})

The correct expectation for this setup is:

[:assert [:rf.assert/state-is :login/flow :error]]

Keep the wrong expectation briefly to inspect the failure:

1. Select wrong-expectation and open Tests. Expect one failed assertion.
2. Press show detail. Compare expected :idle with actual :error.
3. Press open in Evidence →. The right rail selects the associated beat in the run's narrative.
4. Find the setup's second :login/flow beat, whose payload is :login/failure. Choose Xray: App-db.

The machine moved from :submitting to :error when setup delivered :login/failure. The scenario did what it declared; its expectation was wrong. Change :idle to :error and re-run. Expect a pass.

For an application regression, keep the correct expectation and fix the handler, transition or derived value that violates it. A named regression variant keeps that reproduction in the test suite.

Read the evidence

The narrative groups setup and script steps into spans. Events within them have beats with epoch ids and counts for state changes, effects, traces, subscription runs and renders. A non-dispatch step may have no separate beat; its recorded verdict can be associated with the preceding span.

Xray: Epoch, Xray: App-db and Xray: Trace select that beat's frame and epoch. Inspect the event's payload, state change and emitted effects, then follow a source link to the code responsible.

Direct epoch evidence was recorded while the event ran. Subscription and render evidence labelled attributed (post-settle) was matched afterwards. Use it to investigate re-renders while keeping that attribution limit in mind.

Copy narrative EDN gives a bug report the executed sequence and evidence. Docs mode shows the first beats of the same run. Evidence is a right-rail panel, beside the canvas, rather than another main mode tab.

Xray in the right rail

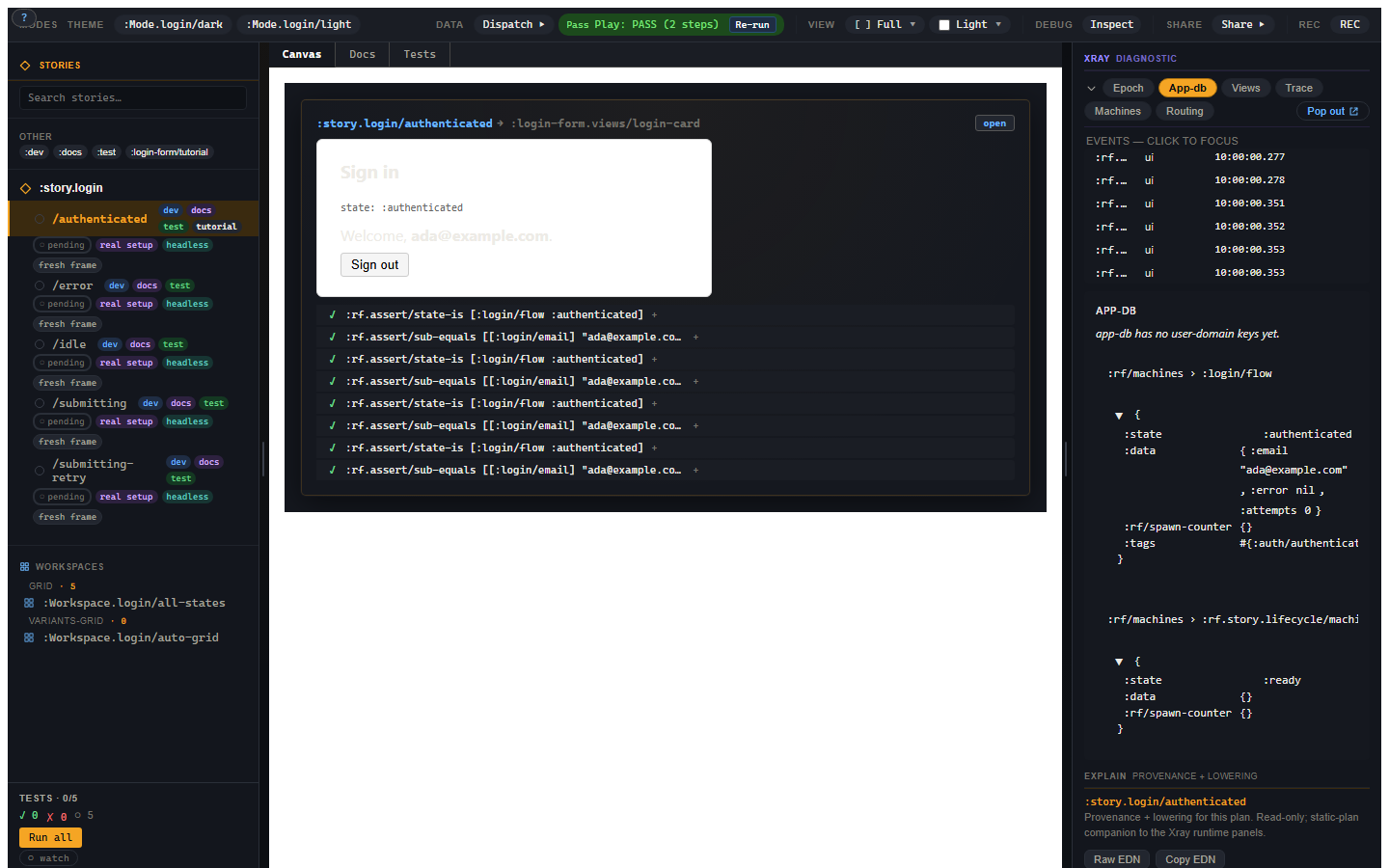

The rail observes the selected variant's frame and offers Epoch, App-db, Views, Trace, Machines and Routing. Select another variant and the observed frame changes. Pop out opens the full Xray shell for its other panels.

For a story that usually needs machine diagnosis:

(rf.story/reg-story :story.login-form
  {:component :login-form.views/login-card
   :xray-panel :machines})

A variant's :xray-panel wins over the parent's. Clicking a rail chip overrides the initial choice for the session. The :xray preset map can also choose the full shell's panel and initial filters. The registration reference records the forms. Static catalogues omit Xray.

Story disables Xray's global shortcuts so the shell's own shortcuts work. Use panel controls inside the embed and its pop-out.

Schema failures

A valid final state does not erase a violation from an earlier event. Story keeps schema-failure evidence in the result. Unconsumed violations prevent a pass, even when a handler rolled back or a later event repaired the value. Xray's schema records identify the location, path, value and schema.

Use :rf.assert/schema-error only when a test deliberately expects a specific violation. The assertion reference describes matching and consumption; the Xray schema exercise shows the runtime view.

Troubleshooting

Symptom	Cause	Fix
Evidence is empty	The variant has not run, or the host did not retain epochs	Re-run in the development shell and check epoch collection.
A script checkpoint has no event beat	It did not dispatch application work	Inspect the preceding setup/dispatch span and the assertion's associated beat.
An Xray link cannot show an old epoch	The capture was reset or evicted	Re-run the scenario and inspect its new capture.
Xray shows another variant	The selected frame changed	Select the failed variant again and follow its Evidence link.
State-is fails despite a plausible app-db	Machine state lives in runtime state	Inspect the machine snapshot, not only ordinary app-db paths.
A repaired db still gives a schema failure	The run retains an earlier violation	Fix its source or declare the specific expected violation.
